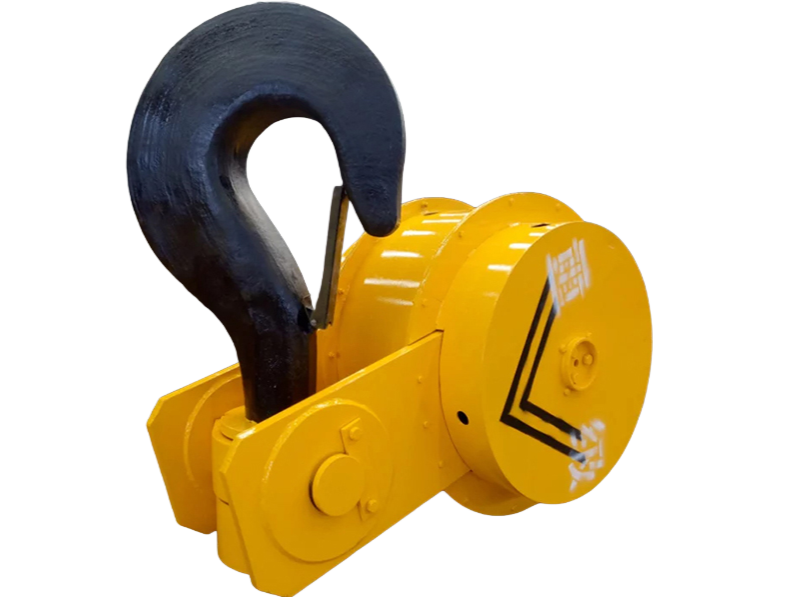

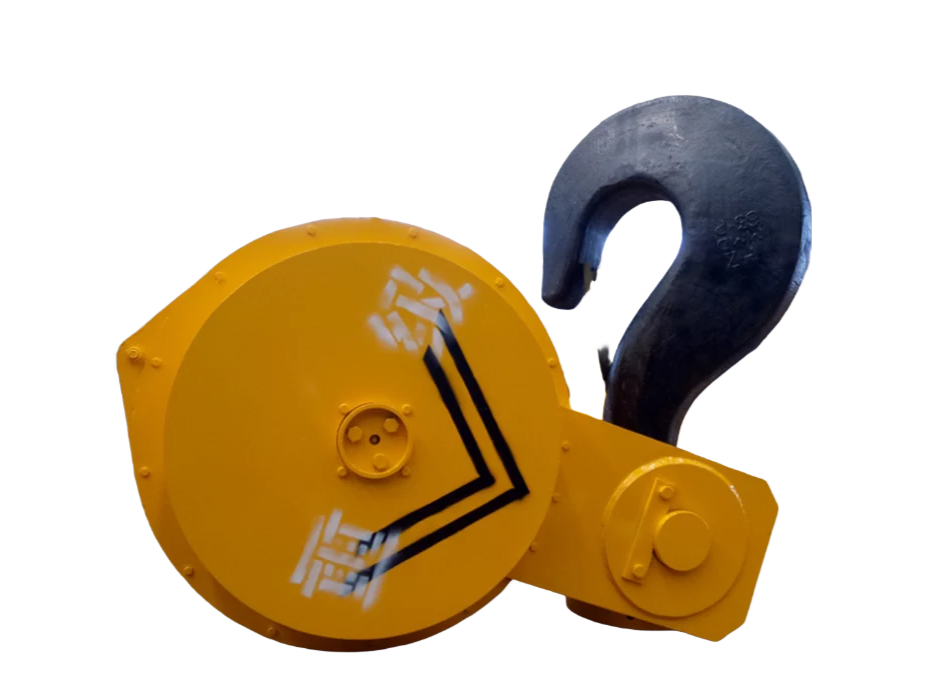

Gantry Crane Hook

　　Gantry crane hook is a key load-bearing component, and its design and operational characteristics directly impact the safety and efficiency of lifting operations. Gantry crane hooks manufactured by Weihua Crane's parts factory feature the following:

　　1. High Strength and Durability

　　Material Selection: Typically forged from high-quality alloy steel (such as 20CrMnTi), they undergo heat treatment (quenching and tempering) to enhance hardness and toughness. Load capacities range from one ton to several hundred tons.

　　Safety Factor: The rated load is generally at least twice the rated lifting capacity (for example, GB/T10051 requires a breaking load ≥ 4 times the rated load).

　　2. Standardized Design

　　Type Classification:

　　Single Hook: For light to medium loads (≤80 tons), with a simple structure and excellent visibility.

　　Double Hook: For heavy loads (>80 tons), with symmetrical load distribution.

　　Claw Hook: With side plates to prevent the sling from slipping, commonly used on metallurgical cranes.

　　Compliance: Conforms to international/national standards such as ISO, DIN, and GB (e.g., GB/T10051.1-2010).

　　3. Safety Devices

　　Anti-Unhooking Design:

　　Spring Lock: Automatically closes to prevent the sling from unhooking (e.g., swivel safety hook).

　　Baffle/Catch: Manually locked, suitable for large-tonnage hooks.

　　Overload Protection: Some hooks have integrated sensors for real-time load monitoring (e.g., electronic weighing hooks).

　　4. Flexibility and Adaptability

　　Rotation: Some hooks are equipped with bearings (e.g., 360° swivel hooks) for precise positioning, making them particularly suitable for container loading and unloading.

　　Modular Accessories: Optional accessories such as electromagnetic chucks and C-hooks can be added to accommodate specialized materials such as steel and scrap metal.

　　5. Convenient Maintenance and Inspection

　　Inspection Points:

　　Wear: Hooks with >15% deformation of the opening or >10° twisting must be scrapped.

　　Cracks: Regular inspection with magnetic particle inspection (recommended every 6 months).

　　Lubrication Design: Grease holes are provided at the shaft pin to reduce wear.

　　6. Environmental Adaptability

　　Corrosion Protection: Galvanized, plastic-sprayed, or stainless steel (for chemical and port applications).

　　High-Temperature Protection: Heat shield installed (metallurgical hooks withstand temperatures exceeding 500°C).

　　7. Ergonomic Optimization

　　Weight Balance: Large-tonnage hooks are equipped with a balanced pulley system to reduce vibration.

　　Clear Marking: Permanently mark information such as the rated load and production number.
